Cable Glands

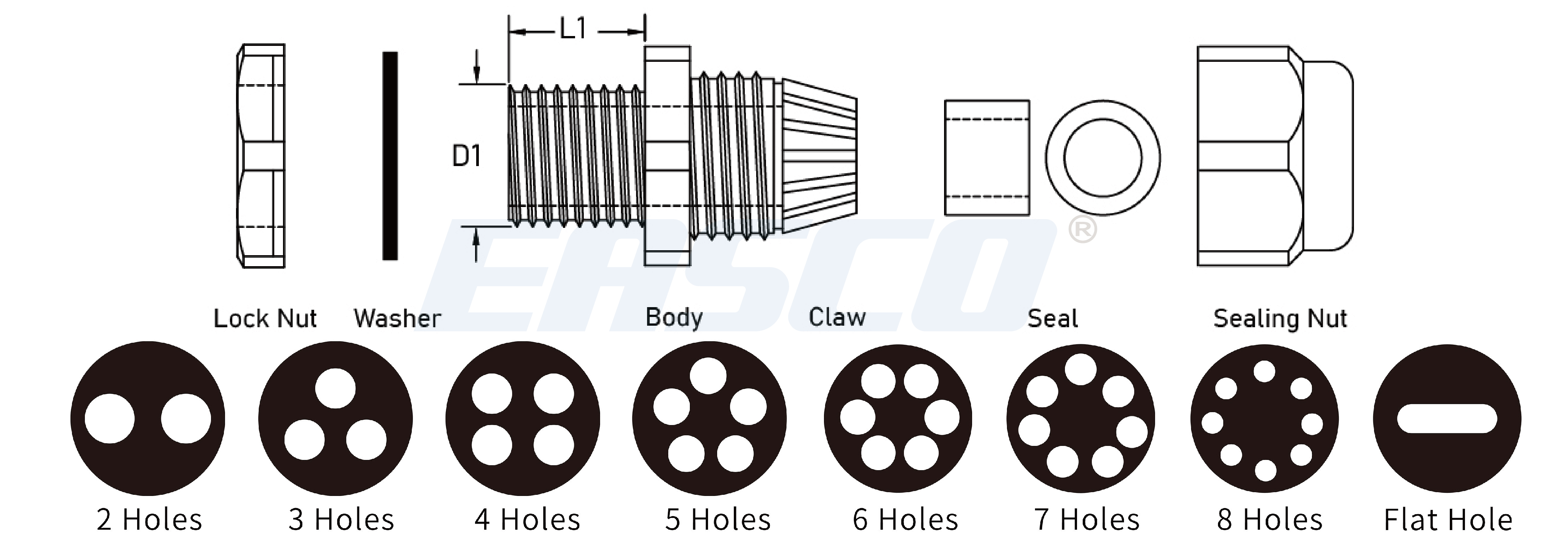

尼龙电缆多孔接头(分体型)

螺牙规格：公制牙 (Metric) PG牙、G (PF/BSP/PS)牙、NPT牙。
产品材质：A.C.E.F部分采用UL认可之尼龙PA66(防火等级UL94V-2)制成;(可定制UL认可的V-0防火等级尼龙原料);B.D部分采用三元乙丙耐候橡胶制成;(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
保护等级：P68-10
工作温度：静态 -40℃至 100℃，或瞬间可耐热至 120℃;动态-20℃至 80℃，或瞬间可耐热至100℃。
产品特性：特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
颜色种类：黑色、灰色，其它颜色可定做。
备注：特殊规格需要请联系工厂

下载视频询盘

货号	型号	多孔规格	电缆范围(mm)	螺纹外径(mm)	螺纹长度(mm)	扳手径(mm)	包装(PCS)
A0107.009.0001	M12-3	2 Holes	3-1.2	12	9	18/19	50
A0107.009.0009	M16-4	3 Holes	4-1.6	16	15	22/22	50
A0107.009.0017	M20-3.5	4 Holes	3.5-1.5	20	15	27/27	50
A0107.009.0040	M20-6	Flat Hole	6-14	20	15	27/27	50
A0107.009.0019	M25-5	4 Holes	5-2	25	15	33/33	50
A0107.009.0006	M25-8.7	2 Holes	8.7-4.5	25	15	33/33	50
A0107.009.0014	M32-10	3 Holes	10-5	32	15	41/41	20
A0107.009.0008	M12-2.6	3 Holes	2.6-1.2	12	9	18/19	50
A0107.009.0011	M20-5	3 Holes	5-2	20	15	27/27	50
A0107.009.0013	M25-8	3 Holes	8-4	25	15	33/33	50
A0107.009.0015	M12-2.3	4 Holes	2.3-1	12	9	18/19	50
A0107.009.0016	M16-3	4 Holes	3-1.2	16	15	22/22	50
A0107.009.0018	M20-4.5	4 Holes	4.5-2	20	15	27/27	50
A0107.009.0044	M25-7	Flat Hole	7-14	25	15	33/33	50
A0107.009.0021	M32-9	4 Holes	9-4.5	32	15	41/41	20
A0107.009.0028	M16-2.5	6 Holes	2-1	16	15	22/22	50
A0107.009.0033	M20-3	7 Holes	3-1.2	20	15	27/27	50
A0107.009.0024	M20-4.2	5 Holes	4.2-1.7	20	15	27/27	50
A0107.009.0037	M25-3.5	8 Holes	3.5-1.5	25	15	33/33	50
A0107.009.0043	M25-6	Flat Hole	6-14	25	15	33/33	50
A0107.009.0045	M32-8	Flat Hole	8-22	32	15	41/41	20
A0107.009.0031	M25-5.3	6 Holes	5.3-2.4	25	15	33/33	50
A0107.009.0032	M32-7	6 Holes	7-3.5	32	15	41/41	50
A0107.009.0035	M32-6	7 Holes	6-3	32	15	41/41	50
A0107.009.0036	M20-2.8	8 Holes	2.8-1	20	15	27/27	50
A0107.009.0038	M16-10	Flat Hole	6-10	16	15	22/22	50
A0107.009.0039	M20-6.5	Flat Hole	6.5-12	20	15	27/27	50
A0107.009.0041	M20-12	Flat Hole	7-12	20	15	27/27	50
A0107.009.0042	M20-14	Flat Hole	7-14	20	15	27/27	50
A0107.009.0046	M40-10	Flat Hole	10-28.5	40	20	50/50	10
A0107.009.0047	M40-5.5	Flat Hole	5.5-29	40	20	50/50	10
