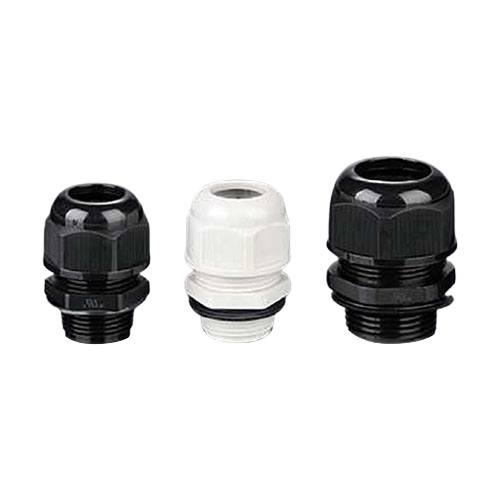

PG/PGL 尼龙电缆防水接头

PG/PGL型尼龙电缆防水接头

下载视频询盘

PG尼龙电缆防水接头.pdf 下载

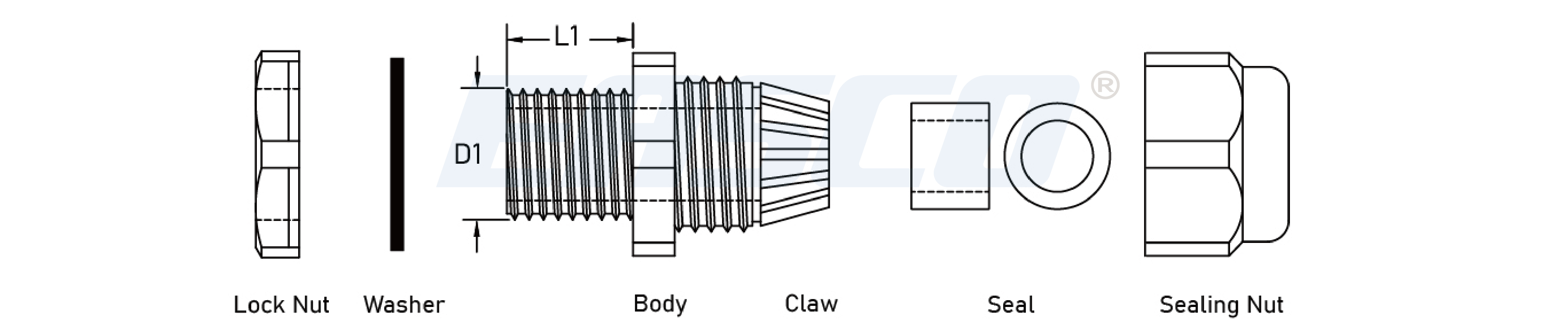

货号	型号	最小口径(mm)	最大口径(mm)	尾部直径D1(mm)	尾长L1(mm)	扳手尺寸(mm)	固定孔直径(mm)
A0107.002.0001	PG7-6.5	3	6.5	12.5	8	19/15	12.5~12.8
A0107.002.0002	PG7-5.5	3	5.5	12.5	9	19/19	12.5~12.8
A0107.002.0003	PG7-8	4	8	12.5	9	19/19	12.5~12.8
A0107.002.0004	PG9-8	4	8	15.2	9	22/19	15.2~15.5
A0107.002.0005	PG9-5.5	3	5.5	15.2	9	22/19	15.2~15.5
A0107.002.0006	PG11-10	6	10	18.6	9	24/22	18.6~18.9
A0107.002.0007	PG11-7	4	7	18.6	9	24/22	18.6~18.9
A0107.002.0008	PG13.5-12	7	12	20.4	9	27/24	20.4~20.7
A0107.002.0009	PG13.5-9	5	9	20.4	9	27/24	20.4~20.7
A0107.002.0010	PG16-14	8.5	14	22.5	10	30/27	22.5~22.8
A0107.002.0011	PG16-11	7	11	22.5	10	30/27	22.5~22.8
A0107.002.0012	PG21-18	12	18	28.3	10	35/33	28.3~28.7
A0107.002.0013	PG21-16	11	16	28.3	10	35/33	28.3~28.7
A0107.002.0014	PG29-25	18	25	37	12	46/42	37~37.4
A0107.002.0015	PG29-22	16	22	37	12	46/42	37~37.4
A0107.002.0016	PG36-31	24	31	47	15	56/52	47~47.4
A0107.002.0017	PG36-26	21	26	47	15	56/52	47~47.4
A0107.002.0018	PG42-40	31	40	54	20	65/62	54~54.4
A0107.002.0019	PG42-32	26	32	54	20	65/62	54~54.4
A0107.002.0020	PG48-44	32	44	59.3	20	69/65	59.3~59.7
A0107.002.0021	PG48-38	30	38	59.3	20	69/65	59.3~59.7

M/ML型尼龙电缆防水接头

材质：尼龙PA66+EPDM橡胶
螺纹规格：公制
工作温度：-40℃至105℃，短时可达+160℃
