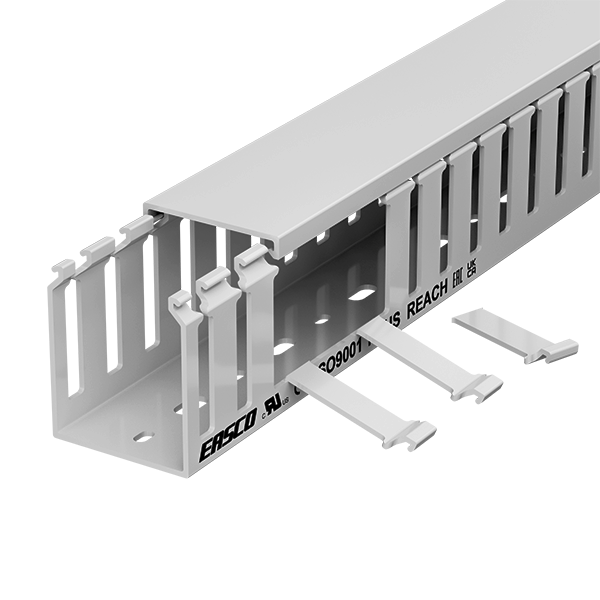

GARZ型易折断配线槽

材质 : 聚氯乙烯 (PVC)

1级自熄性硬质 PVC (UL94-V0)

温度：+5°F 至 +140°F（-15°C 至 +60°C）

线槽盖：防滑线槽盖采用超齐平盖设计

线槽齿：光滑平整，不会伤害安装人员或损坏电线或电缆

颜色：灰色（白色、蓝色、黑色可根据要求提供）

符合标准：RoHS；REACH

符合规范：CSA、EN 50085-1:2005 + A1:2013、EN 50085-2-3_1A、UL

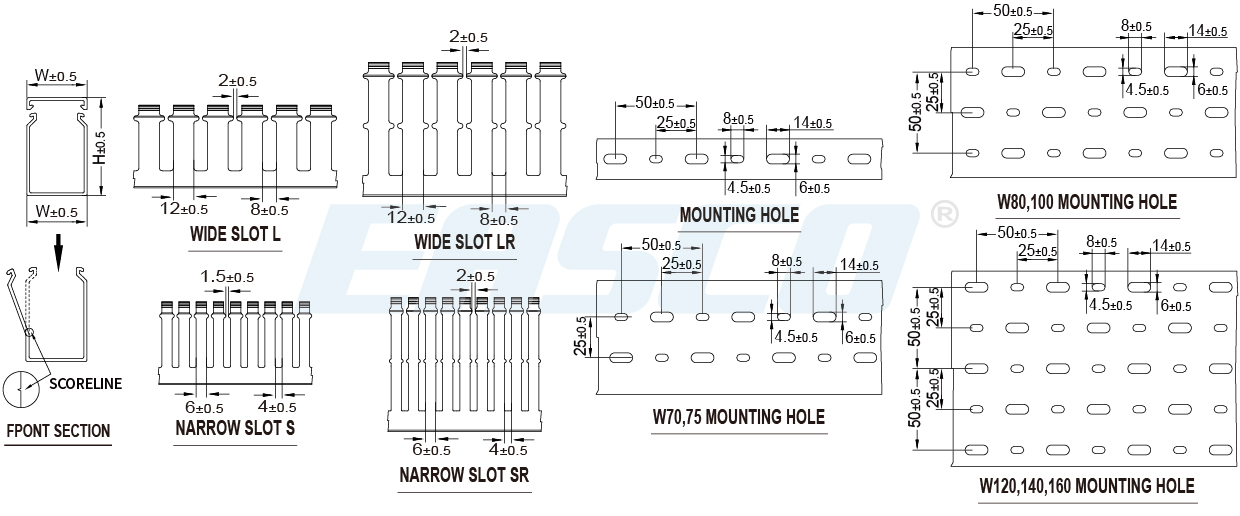

符合 DIN 43659 的标准安装孔

下载视频询盘

GARZ型易折断配线槽.pdf 下载

货号	型号	宽 (W)	高 (H)	粗齿 (L)	细齿 (S)	材质	包装数量(根)
A0101.007.0001	GARZ2525	25	25	L	S	PVC	90
A0101.007.0002	GARZ3025	30	25	L	S	PVC	60
A0101.007.0003	GARZ4025	40	25	L	S	PVC	60
A0101.007.0004	GARZ5025	50	25	L	S	PVC	50
A0101.007.0005	GARZ2030	20	30	L	S	PVC	96
A0101.007.0006	GARZ2530	25	30	L	S	PVC	72
A0101.007.0007	GARZ3030	30	30	L	S	PVC	60
A0101.007.0008	GARZ3530	35	30	L	S	PVC	56
A0101.007.0009	GARZ4030	40	30	L	S	PVC	50
A0101.007.0010	GARZ3333	33	33	L	S	PVC	56
A0101.007.0011	GARZ2535	25	35	L	S	PVC	72
A0101.007.0012	GARZ3535	35	35	L	S	PVC	50
A0101.007.0013	GARZ5035	50	35	L	S	PVC	50
A0101.007.0014	GARZ2540	25	40	L	S	PVC	60
A0101.007.0015	GARZ4040	40	40	L	S	PVC	50
A0101.007.0016	GARZ6040	60	40	L	S	PVC	40
A0101.007.0017	GARZ8040	80	40	L	S	PVC	32
A0101.007.0018	GARZ2545	25	45	L	S	PVC	54
A0101.007.0019	GARZ3345	33	45	L	S	PVC	42
A0101.007.0020	GARZ4545	45	45	L	S	PVC	46
A0101.007.0021	GARZ6545	65	45	L	S	PVC	36
A0101.007.0022	GARZ2550	25	50	L	S	PVC	50
A0101.007.0023	GARZ3050	30	50	L	S	PVC	60
A0101.007.0024	GARZ3550	35	50	L	S	PVC	54
A0101.007.0025	GARZ4050	40	50	L	S	PVC	50
A0101.007.0026	GARZ4550	45	50	L	S	PVC	40
A0101.007.0027	GARZ5050	50	50	L	S	PVC	40
A0101.007.0028	GARZ5550	55	50	L	S	PVC	40
A0101.007.0029	GARZ6050	60	50	L	S	PVC	34
A0101.007.0030	GARZ8050	80	50	L	S	PVC	26
A0101.007.0031	GARZ10050	100	50	L	S	PVC	20
A0101.007.0032	GARZ2560	25	60	L	S	PVC	66
A0101.007.0033	GARZ3060	30	60	L	S	PVC	60
A0101.007.0034	GARZ3560	35	60	L	S	PVC	50
A0101.007.0035	GARZ4060	40	60	L	S	PVC	42
A0101.007.0036	GARZ4560	45	60	L	S	PVC	42
A0101.007.0037	GARZ5060	50	60	L	S	PVC	36
A0101.007.0038	GARZ5560	55	60	L	S	PVC	36
A0101.007.0039	GARZ6060	60	60	L	S	PVC	30
A0101.007.0040	GARZ8060	80	60	L	S	PVC	22
A0101.007.0041	GARZ10060	100	60	L	S	PVC	18
A0101.007.0042	GARZ7264	72	64	L	S	PVC	24
A0101.007.0043	GARZ2565	25	65	L	S	PVC	60
A0101.007.0044	GARZ3365	33	65	L	S	PVC	54
A0101.007.0045	GARZ4565	45	65	L	S	PVC	42
A0101.007.0046	GARZ6565	65	65	L	S	PVC	30
A0101.007.0047	GARZ2575	25	75	L	S	PVC	50
A0101.007.0048	GARZ5075	50	75	L	S	PVC	24
A0101.007.0049	GARZ7575	75	75	L	S	PVC	16
A0101.007.0050	GARZ10075	100	75	L	S	PVC	12
A0101.007.0051	GARZ2580	25	80	LR	SR	PVC	50
A0101.007.0052	GARZ3080	30	80	LR	SR	PVC	40
A0101.007.0053	GARZ3580	35	80	LR	SR	PVC	36
A0101.007.0054	GARZ4080	40	80	LR	SR	PVC	32
A0101.007.0055	GARZ4580	45	80	LR	SR	PVC	28
A0101.007.0056	GARZ5080	50	80	LR	SR	PVC	24
A0101.007.0057	GARZ5580	55	80	LR	SR	PVC	24
A0101.007.0058	GARZ6080	60	80	LR	SR	PVC	20
A0101.007.0059	GARZ8080	80	80	LR	SR	PVC	16
A0101.007.0060	GARZ10080	100	80	LR	SR	PVC	12
A0101.007.0061	GARZ12080	120	80	LR	SR	PVC	10
A0101.007.0062	GARZ14080	140	80	LR	SR	PVC	8
A0101.007.0063	GARZ25100	25	100	LR	SR	PVC	50
A0101.007.0064	GARZ33100	33	100	LR	SR	PVC	36
A0101.007.0065	GARZ40100	40	100	LR	SR	PVC	28
A0101.007.0066	GARZ48100	48	100	LR	SR	PVC	24
A0101.007.0067	GARZ50100	50	100	LR	SR	PVC	24
A0101.007.0068	GARZ60100	60	100	LR	SR	PVC	20
A0101.007.0069	GARZ70100	70	100	LR	SR	PVC	16
A0101.007.0070	GARZ75100	75	100	LR	SR	PVC	16
A0101.007.0071	GARZ80100	80	100	LR	SR	PVC	16
A0101.007.0072	GARZ100100	100	100	LR	SR	PVC	12
A0101.007.0073	GARZ120100	120	100	LR	SR	PVC	8
A0101.007.0074	GARZ160100	160	100	LR	SR	PVC	8
